Author Topic: bas ass 363 build  (Read 49112 times)
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« on: September 11, 2010, 05:34:36 pm »

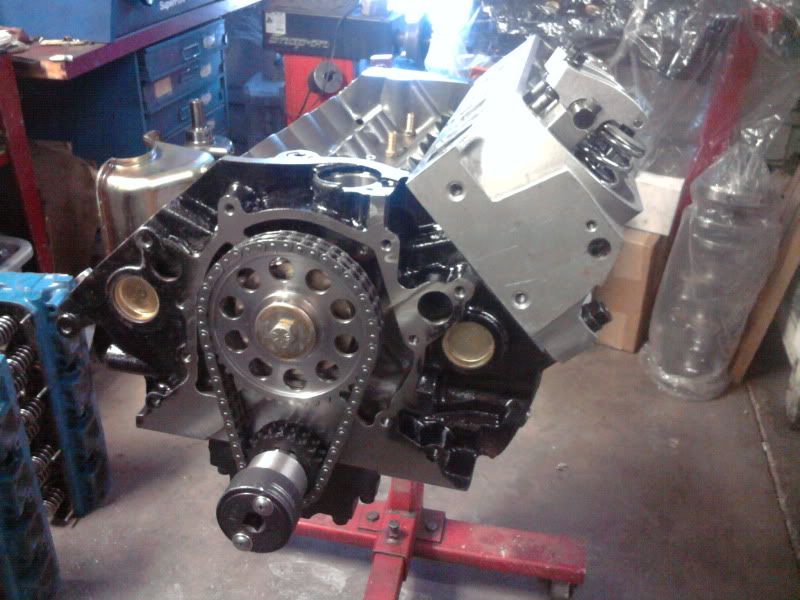

GOAL: 10.0 n/a 8.80 on a 200 shot

RPM: 8000

BLOCK: DART IRON EAGLE

ROTATING ASSYMBOLY:
Eagle forged crank
Diamond dome pistons for t/w head
scat forged H beam rods
total seal rings
king bearings
Romac 28oz balencer
TCI flexplate

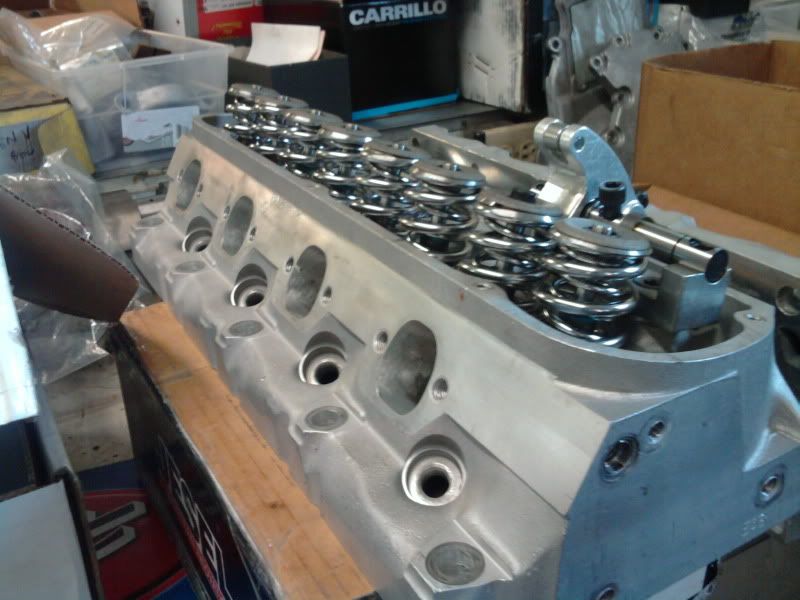

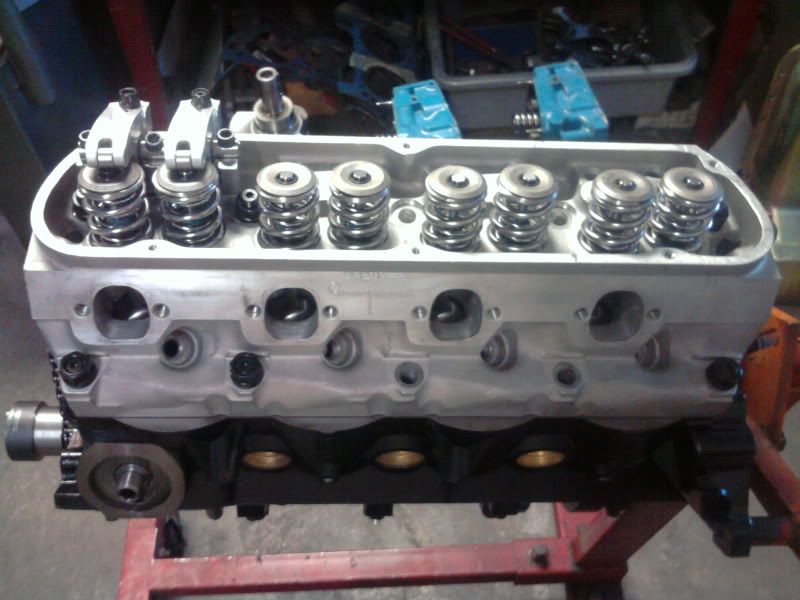

HEADS: TFS 170 t/w heads
chromoly sleeved pushrod holes, ported to sleeves.
exhaust ported to header plates.
int 338 cfm exh 268 cfm
heavy springs 700lbs open
titanium retainers
longer 2.08 itake valves 1.6 exhaust valves

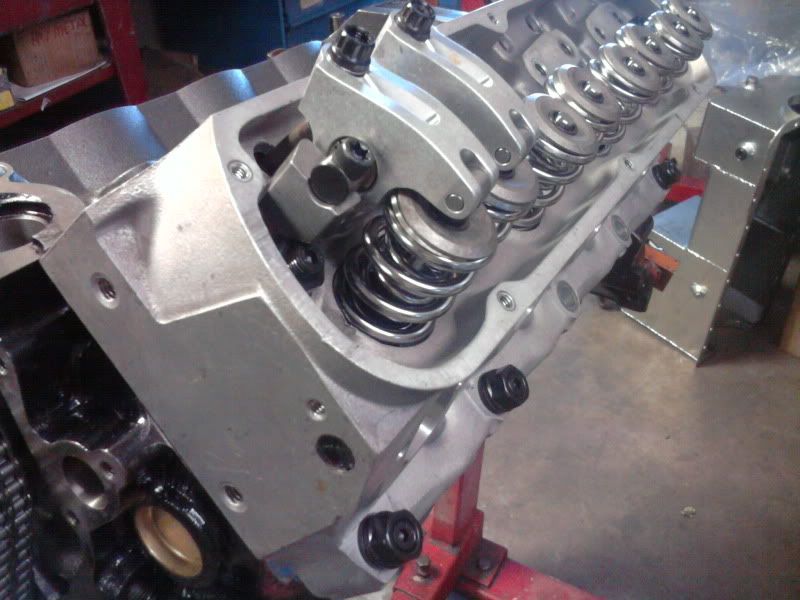

ROCKERS: JESEL shaft mount rockers for t/w heads

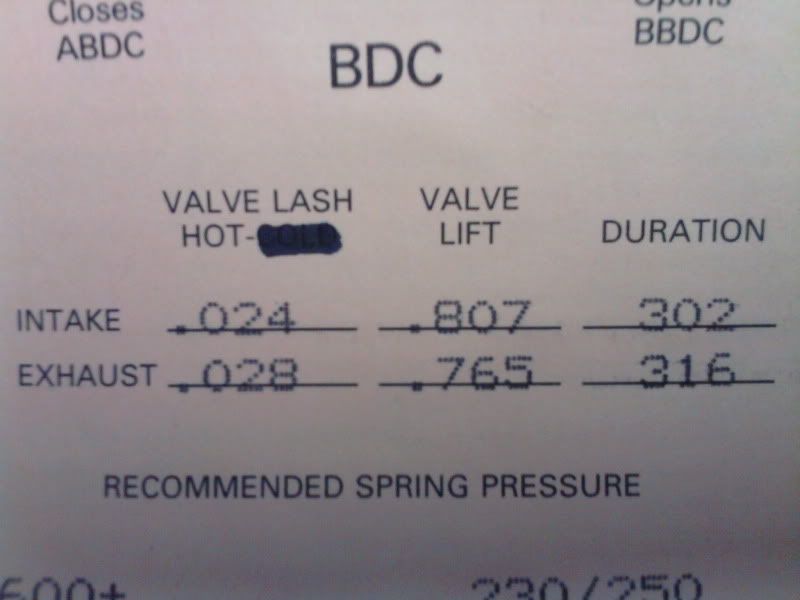

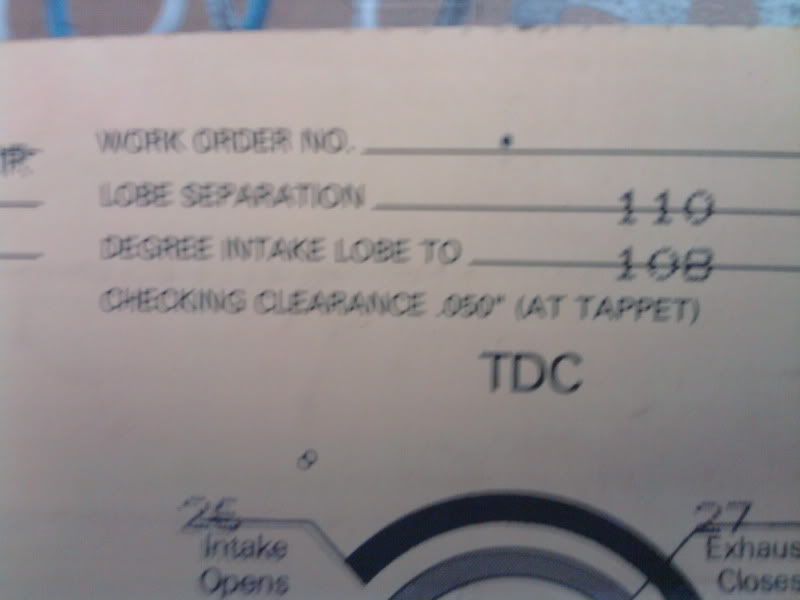

CAM: SCHNYDER  int lift .807 exh 765 DUR int 302 exh 316 110 lsa

INTAKE: Victor JR.

EXHAUST: KOOKS 1 7/8" long tubes

TRANSMISSION: C4 transbreak,manual valve body, all the goodies.

CONVERTER: HUGHS 8" (stall unknown yet 5500+)

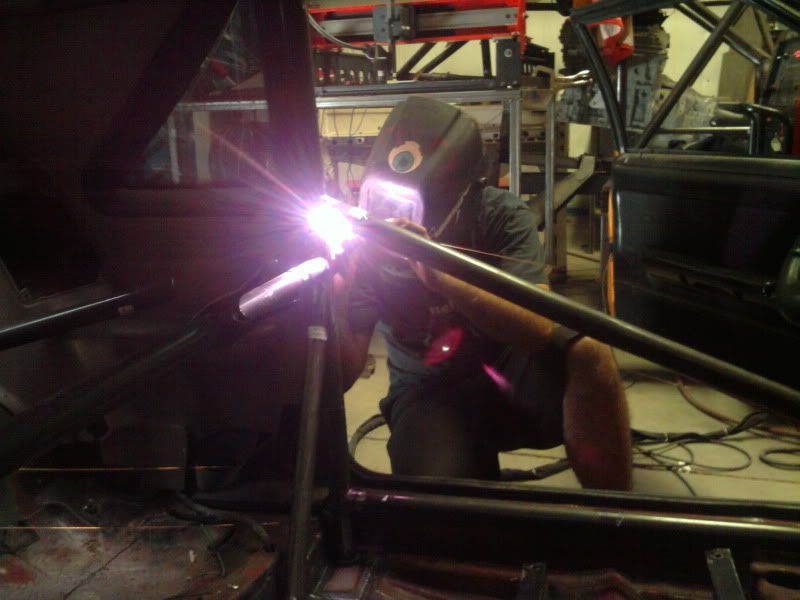

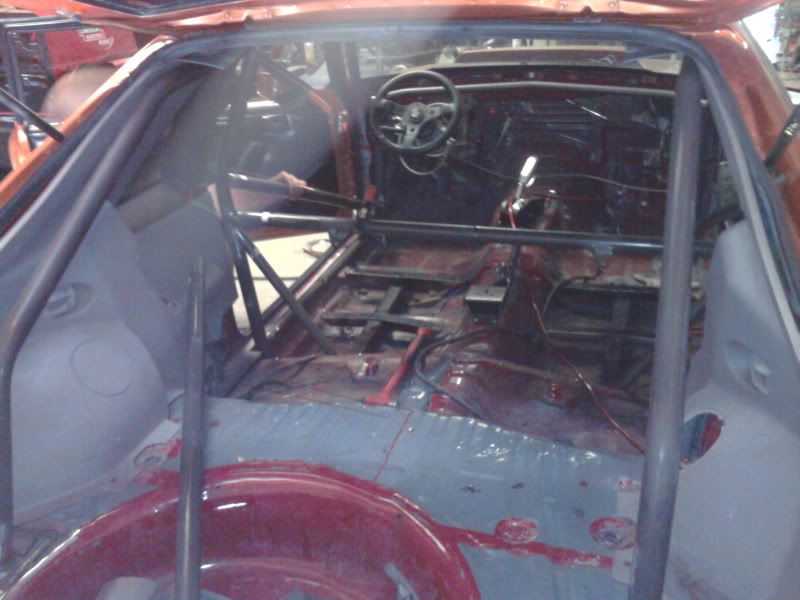

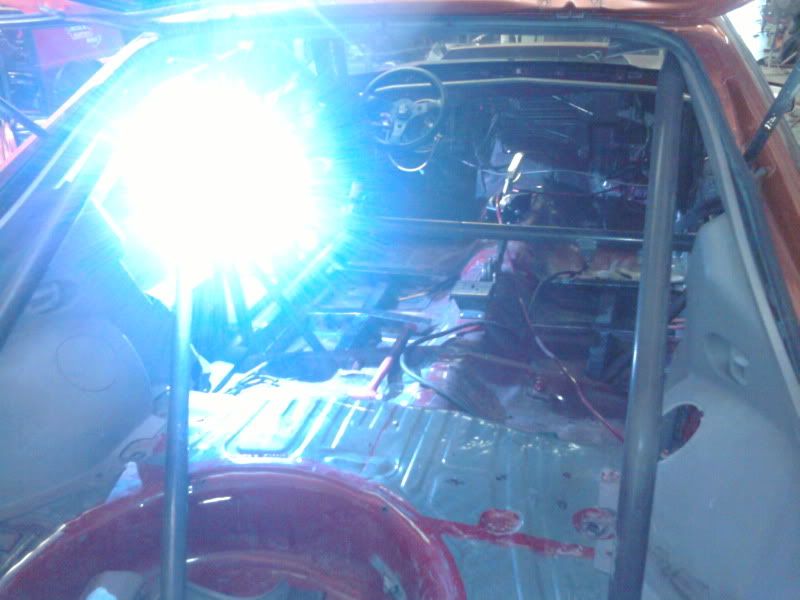

here are some pics of the cage getting done today it will be ready tomorrow ill take more pics. this guy can weld like a mad man, he builds off road race trucks from the ground up for the lucus races.

if anyone is ever thinking about having a cage put in do yourself a huge favor and buy one pre bent and jig notched from wolfe racecraft.. top notch.

mine is chromoly and it doesnt weigh shit...









Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
jtmustang
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 3863

Location: arlington , washington

« Reply #1 on: September 11, 2010, 07:30:47 pm »

nice build..how soon till its running?

how come not a super vic for the intake,,u definetely have the cubes/heads  for it...

also what carb? size?
Logged
Matt Paul
Big Block
*****
Offline Offline

Posts: 1349


Location: Dearborn Michigan

« Reply #2 on: September 11, 2010, 08:31:03 pm »

Did I hear you say 28oz balance on a 363 spinning 8000rpm Dissapointed
Logged

Thanks to the people listed below for all there finical support with the car!!!!
2010 NMRA Bowling Green Open Comp Winner!!!
Dave Zimmermann @ Team-Z Motorsports for has Cage and Suspension parts  734-789-9540
Cary Chounard @ Performance Induction for my Heads and Intake 734-658-1676

Just a POS engine I built on my garage floor with a 300 shot running 5.3x with a 1.159 60ft at 2800lbs in the 1/8 but what do I know LOL!
oldmanjoe
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 2667


Location: Tampa, Fl
ya `ll play nice ye-hear


« Reply #3 on: September 11, 2010, 09:06:59 pm »

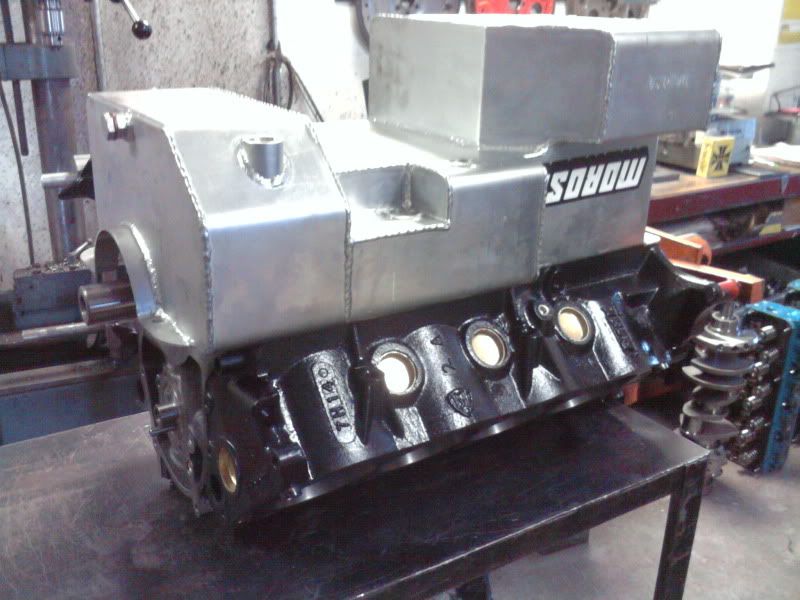

 Ah! Prepare        i see you are going to put a lake in that valley !!!!! how`s the spillway in the front of the block ?         Spt at PC       four finger whore        Naughty      joe
Logged

Still in the classroom hopefully still awake !!!
 A mind is like a parachute it ONLY works when it is OPEN
 Grandpa`s word`s of wisdom, joey that thing between your shoulders is not a hat rack
 Only a rich man can afford cheap parts, because he can afford to replace them
 If you did not understand what i said,say so and i will try and explain it another way
Many of life's failures are experienced by people who did not realize how close they were to success when they gave up.
Don`t get frustrated...get educated,you are at the library now ,so start reading .
Life`s journey is not to arrive at the grave Safely in a well preserved body,Rather to skid in sideways, out of control, totally worn out, Shouting Holy shit what a ride.
Inside the box is too crowded for me!!! besides every time you get going you run in to another corner.
 SPEED READING and written technical information , Don`t go together
Time is the best teacher, but most of its students die before learning the lessons.
IF YOUR READING COMPREHENSION IS NOT
OF A 5TH GRADE LEVEL DO NOT PROCEED {jay allen}
The voices in my head may not be real, but they have some good ideas!
mmb
Guest
« Reply #4 on: September 11, 2010, 09:34:19 pm »

Nothing but problems with my wolfe pre bent cage....  I will have only custom ones done from now on......


Car is looking good though
Logged
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« Reply #5 on: September 11, 2010, 09:36:28 pm »

Ah! Prepare        i see you are going to put a lake in that valley !!!!! how`s the spillway in the front of the block ?         Spt at PC       four finger whore        Naughty      joe

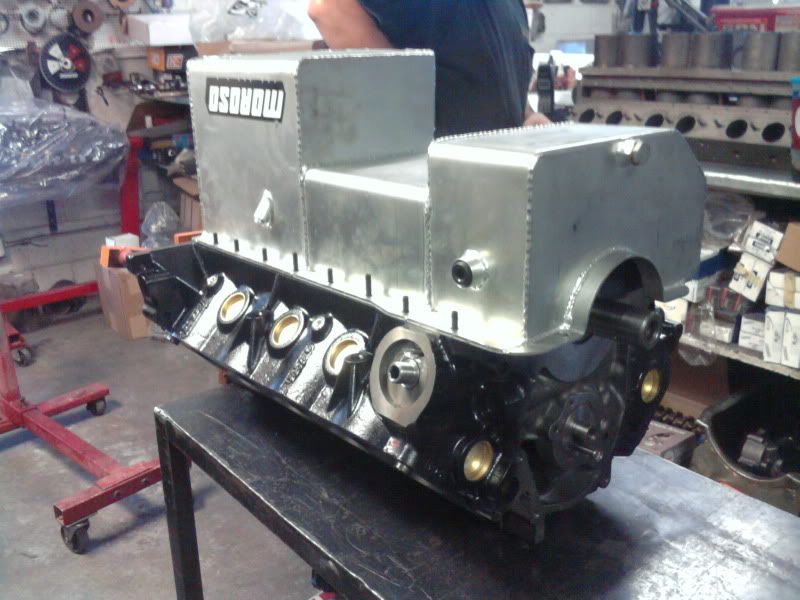

there is 2 holes in the back that have been tapered and one in the front. there will be no oil problems.
Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« Reply #6 on: September 11, 2010, 09:39:36 pm »

nice build..how soon till its running?

how come not a super vic for the intake,,u definetely have the cubes/heads  for it...

also what carb? size?

super victor with the carb wont clear the hood, the jr has beem worked to meet the air demand.

i have 14 days to get it to the track.

the carb is a prosystems 1000 i bought from fast88 on here along with the headers.. i was gonna sent the carb in to get reworked but prosystems looked at the specs of the carb and my build and told me to try it out as is.
Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« Reply #7 on: September 11, 2010, 09:42:07 pm »

Did I hear you say 28oz balance on a 363 spinning 8000rpm Dissapointed

yes you did. between that and no titanium valves is the reason i am not spinning higher then 8000.

i have the block to keep the caps stable and the balencer and the flexplate were on the crank when it was balenced to be as accurate as can be.
Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« Reply #8 on: September 11, 2010, 09:45:05 pm »

Nothing but problems with my wolfe pre bent cage....  I will have only custom ones done from now on......


Car is looking good though

really?? thats odd you are the first person i have ever herd that from.. did you get it jig notched from them too? this thing was asome the guy that put it in builds trucks and has never worked with someone elses pre bent cage before and he said it was damn near flawless. the only issue was i had my own subframes so he had to modify the subframe down bars a little but it was no big deal..
Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
mmb
Guest
« Reply #9 on: September 11, 2010, 09:51:37 pm »

Yeah it was jig notched and pre bent.....  we actually re-made a few bars because we didnt like the way it fit....   If you ever mini tub yours hit me up, your going to have to modify it some more  Whistling


Logged
FordRacing250
Big Block
*****
Offline Offline

Posts: 4463


Location: Cerritos CA

WWW
« Reply #10 on: September 12, 2010, 12:32:43 am »

Nice build, engine looks good, i just dont know about the 28oz balance.
Logged

RaceTec Pistons
tim@racetecpistons.com
jtmustang
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 3863

Location: arlington , washington

« Reply #11 on: September 12, 2010, 02:35:29 am »

now just a question, but are those smog/street heat tw's?

as i thought that they couldnt be ported as much as the track heats as the passages for the smog crap... Hmmmmm


but nice build and i likey the color of your car... Grin
Logged
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« Reply #12 on: September 12, 2010, 03:10:55 am »

Yeah it was jig notched and pre bent.....  we actually re-made a few bars because we didnt like the way it fit....   If you ever mini tub yours hit me up, your going to have to modify it some more  Whistling




i dont plan to do any mini tub but if i ever do ill hit ya up.
Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
e3sean
Small Block
***
Offline Offline

Posts: 156


Location: surprise az

« Reply #13 on: September 12, 2010, 03:12:06 am »

now just a question, but are those smog/street heat tw's?

as i thought that they couldnt be ported as much as the track heats as the passages for the smog crap... Hmmmmm


but nice build and i likey the color of your car... Grin

they are first gen t/w heads i believe they do have smog bs in them but it didnt prevent any porting.
Logged

USAF Luke AFB AZ E-5
Arizonas Fastest Street Cars:Easy Street
FordRacing250
Big Block
*****
Offline Offline

Posts: 4463


Location: Cerritos CA

WWW
« Reply #14 on: September 12, 2010, 04:13:00 am »

you going to Vegas for SCSN? I will be out there, car or not.
Logged

RaceTec Pistons
tim@racetecpistons.com
