Author Topic: Robert's modified '69 Merc  (Read 1185457 times)
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« on: August 13, 2010, 02:33:06 pm »










I don't have any current pics.  I need to take some.  It's just been friggin' hot and humid here where I live.
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« Reply #1 on: August 13, 2010, 02:43:35 pm »


I kind of agree with Javier on the gear thing, MERC you have enough converter now, a 4.10 or 3.73 the car might feel stronger, meanwhile be more enjoyable to drive
I doubt you drive on the highway much, a 4.56gear with a 26"tire and a c4 would probably suck at 65-70

My Merc never sees any freeway miles due to the gearing.

Remember that with me in it the Merc tips the scales at 4000lbs so I need plenty of gear to move our heavy asses!  Anything below 4.10's suck in the take-off and acceleration department!

as far as hp MERC, working with what you have, on a budget, I think I would mill the heads and try to get the compression up to 10.25:1 or 10.5:1

The heads are milled to the limit.  The crappy cast pistons are 8.5:1 because of some friggin' tree-hugger.

and ditch the stack of spacers, go 1" open, or just ditch that intake altogether and look into a small runner single plane for now.

How come you don't like my stack of spacers?  I have 2" of open plenum added and because of the crappy OTS cam I need 2" more of a 4-hole spacer to improve the carb signal.  They are because of my OTS cam which sucks and I'm being cheap for now on this motor so I can save up for an upgraded new motor!
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
Fst Blk
Bill Watson
Big Block
*****
Offline Offline

Posts: 2683


Location: Southeast Kentucky

WWW
« Reply #2 on: August 13, 2010, 02:46:47 pm »

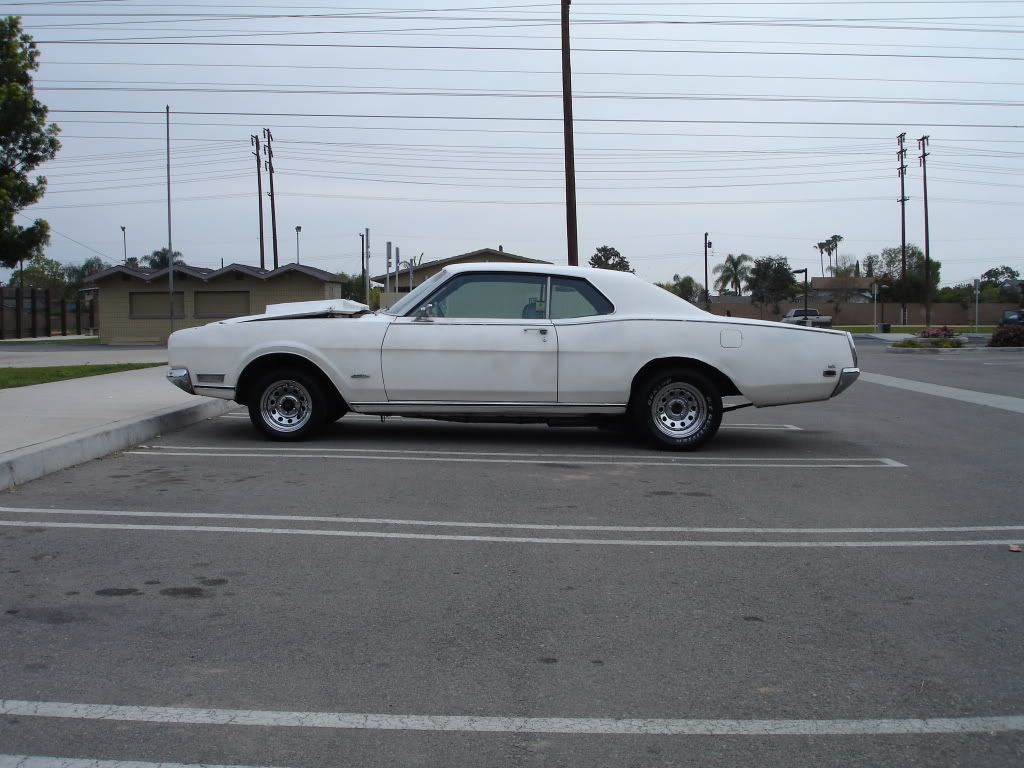

What's the deal with the hood. It looks like it doesn't fit right in the rear. Also, what did you do to the rear wheel well? It looks like you got trim happy.
Bill
Logged

67 MUSTANG FASTBACK... on Jackstands

Living the dream or running it down... Haven't figured out which yet.


http://67fastback.webs.com/
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« Reply #3 on: August 13, 2010, 02:52:36 pm »

What's the deal with the hood. It looks like it doesn't fit right in the rear.

It keeps my motor cool and especially the carb's intake charge!  It's something I thought of.  Everyone asks me when I'm going to fix that and I reply by taking the hood off so they can see that I've welded the rear spring assembly together and I've installed hood latch pins there and also two more in front for a total of four latch pins and the OEM front latch, too so it isn't ever coming off.

Also, what did you do to the rear wheel well? It looks like you got trim happy.

A little bit trim happy.   Spt at PC


It will turn out better because soon I'm going to put on some sticky Nitto 555DR tires on it that will be 315/50R15 and they will take up most of the open space that my cutting wheel has created.  I hope!  Whistling
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
289nate
"IL BUONO"
Global Moderator
Big Block
*****
Offline Offline

Posts: 11467


Location: Los Angeles

« Reply #4 on: August 13, 2010, 03:02:12 pm »

For some reason I've always liked that body style.  Especially the front.  Just looks cool to me.  Smiley
Logged

\'65 fastback pump gas 289, 4.56 gears, and faceplated T5.  11.123 at 122.4
gmatt9858
Big Block
*****
Offline Offline

Posts: 755

Location: Chicago area (southside)

« Reply #5 on: August 14, 2010, 07:18:18 am »

3,750lb, I didn't realize they were that heavy. Montego's are 'midsize' right? Equivalent to a Fairlane? My buddie's mom had one, maybe a '68. Finding body parts must be a bitch. It's cool though, different.
Logged
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« Reply #6 on: August 14, 2010, 09:11:05 am »

3,750lb, I didn't realize they were that heavy. Montego's are 'midsize' right? Equivalent to a Fairlane? My buddie's mom had one, maybe a '68. Finding body parts must be a bitch. It's cool though, different.

I took it to a steel vendor and put it on their truck scale.  3750lbs.  Spare tire and all.

They say the frame is close to a Fairlane but I think it's heavier than a Fairlane.

I'm not able to find body parts -- its basically get out some steel, some Bondo, my welder, sander and cutting wheel time!

I like it because everyone's brother, uncle and cousin has a Mustang/Nova/Camaro.
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
jayh
Big Block
*****
Offline Offline

Posts: 5471

Location: Buffalo

« Reply #7 on: August 14, 2010, 01:25:50 pm »

"How come you don't like my stack of spacers?  I have 2" of open plenum added and because of the crappy OTS cam I need 2" more of a 4-hole spacer to improve the carb signal.  They are because of my OTS cam which sucks and I'm being cheap for now on this motor so I can save up for an upgraded new motor!"

everyone has different experiences, testing I have done, I've found a 2" 4 hole spacer to be worthless for anything other than a doorstop, it is a restriction in itself; the only time I think it could even be possibly worthwhile would be on a stockish build that is over carburated
a 2" open didnt work well for me on a dual plane intake, I believe that spacer would be worthwhile on a real healthy motor with a single plane intake thats to small, adding plenum volume and raising shift point maybe 200 rpm
my testing on a high rise dual plane found a 1" open spacer to be the only one that really showed any gains.

different combos will have different results, but Im really not wrapping my mind how that setup is helping you




"The heads are milled to the limit.  The crappy cast pistons are 8.5:1 because of some friggin' tree-hugger.

that really sucks. you need a piston swap, but to go through the trouble, a cheapo stroker kit almost makes sense

being a HFT, that cam is actually small, but your compression is in the gutter so that kind of stinks




"Remember that with me in it the Merc tips the scales at 4000lbs so I need plenty of gear to move our heavy asses!  Anything below 4.10's suck in the take-off and acceleration department!"

the only way to know would be to test, your converter is loose enough where it might like the taller gear. it'd definately be a more enjoyable driver IMO







do you have any engine pay pics?
how big is this car in proportion to a fairlane?

Logged

425" pump gas 6.2@110
Matt Paul
Big Block
*****
Offline Offline

Posts: 1349


Location: Dearborn Michigan

« Reply #8 on: August 14, 2010, 03:36:55 pm »

Robert your car looks COOL!! reminds me of the old days, lifted leaf spring cars with shackels cut out fenders Grin, I figure a bench seat with a coloum shift also, When I was a kid my dad had the a 1975 station wagon version yellow with wood grain total Griswold car.
Logged

Thanks to the people listed below for all there finical support with the car!!!!
2010 NMRA Bowling Green Open Comp Winner!!!
Dave Zimmermann @ Team-Z Motorsports for has Cage and Suspension parts  734-789-9540
Cary Chounard @ Performance Induction for my Heads and Intake 734-658-1676

Just a POS engine I built on my garage floor with a 300 shot running 5.3x with a 1.159 60ft at 2800lbs in the 1/8 but what do I know LOL!
289nate
"IL BUONO"
Global Moderator
Big Block
*****
Offline Offline

Posts: 11467


Location: Los Angeles

« Reply #9 on: August 14, 2010, 06:00:32 pm »

Jayh, have you ever stacked a four hole spacer on top of an open spacer?  You would have laughed when you saw my old carb guy stacking spacers ridiculously high.  It was a trip but he claimed in certain cases it worked very well for him.
Logged

\'65 fastback pump gas 289, 4.56 gears, and faceplated T5.  11.123 at 122.4
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« Reply #10 on: August 14, 2010, 06:06:12 pm »

Robert your car looks COOL!! reminds me of the old days, lifted leaf spring cars with shackels cut out fenders Grin, I figure a bench seat with a coloum shift also, When I was a kid my dad had the a 1975 station wagon version yellow with wood grain total Griswold car.

Thanks, Matt.  Yes the front seat is a huge bench seat and it used to have a column shifter.  Now it is a ratchet floor shifter.
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« Reply #11 on: August 14, 2010, 06:13:03 pm »

Jayh, have you ever stacked a four hole spacer on top of an open spacer?  You would have laughed when you saw my old carb guy stacking spacers ridiculously high.  It was a trip but he claimed in certain cases it worked very well for him.

I have tried and tested many, many different spacer combos mixed with open and four-hole.  My present spacer combo with this motor is the best.

I was down and out when I got this motor years ago so it was actually a blessing.  Plus thanks to this forum I've learned quite a lot.  I'm in the save money mode for a future upgrade.  My new motor will have at least 10:1CR!  And forged internals, too.
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
jayh
Big Block
*****
Offline Offline

Posts: 5471

Location: Buffalo

« Reply #12 on: August 14, 2010, 06:48:39 pm »

Jayh, have you ever stacked a four hole spacer on top of an open spacer?  You would have laughed when you saw my old carb guy stacking spacers ridiculously high.  It was a trip but he claimed in certain cases it worked very well for him.

I have but only a 2" on top of a 1", didnt have that much room
did your old crab guy do this on a dual plane intake though? I did and it was fruitless. I can see how it could work on a single plane, just not on a performer rpm. every combo is different, so maybe it does work, Im just not grasping this situation

I like the car a lot! old iron is especially cool. if it were mine though, Id find a way to keep the hood stock and (other than rims) make it a total sleeper!
Logged

425" pump gas 6.2@110
69 Merc
The Ricer King
Adv_SBFTechie
Big Block
****
Offline Offline

Posts: 13801


Location: OC, CA

« Reply #13 on: August 14, 2010, 06:59:44 pm »


I have but only a 2" on top of a 1", didnt have that much room
did your old crab guy do this on a dual plane intake though? I did and it was fruitless. I can see how it could work on a single plane, just not on a performer rpm. every combo is different, so maybe it does work, Im just not grasping this situation

It's kind of turning my RPM air-gap into a single plane because now the cylinders get to pull fuel from all 4 barrels of my carb and not just two barrels like before the open spacers because of the plenum divider that is built into the RPM manifold.


I like the car a lot! old iron is especially cool. if it were mine though, Id find a way to keep the hood stock and (other than rims) make it a total sleeper!

Thank you, man.  I love my Merc.

The hood is functional -- it helps get a cooler carb charge and with 4" of carb spacers a stock hood for sleeper appearance wouldn't close.  Not to mention just hearing it with my dual 3" exhaust anyone who knew anything could hear the modified power.

Quite often I have people drive up next to me at the red light and ask "what do you have under the hood of that thing?" because at times I like to drop it into 2nd gear while cruising and go WOT until the yellow tach shift light comes on!
Logged

Robert's 1969 Mercury Montego (FordStrokers 408W, QFT 850cfm RQ-AN, Super Victor, 1" aluminum open spacer, CamMotion HR .624"/.609" 251*/256* 108* LSA, 1-3/4"x3-1/2" headers, Dynomax Ultra #17224 mufflers, C6/4R100 trans, 8"/9" 5500 converter, Broader Performance manual V/B, 9" 4.56 Detroit Truetrac, Hoosier Pro Street 31x12.5R15 on 10" rims)

The Merc started here = http://sbftech.com/index.php/topic,27178.0.html  Now = http://sbftech.com/index.php/topic,34648.0.html

Thanks to Jim "Woody" and Nicole Woods @ FordStrokers 408W, Westminster Performance Transmission (W.P.T.) transmissions, TCS Performance converters, Broader Performance valvebodies and last but not least a BIG thanks (always) to my friends here and abroad in the World!
jayh
Big Block
*****
Offline Offline

Posts: 5471

Location: Buffalo

« Reply #14 on: August 14, 2010, 07:14:28 pm »

maybe you could shop around for a deal on a used small runner single plane and do some test and tune?

sell whichever one off and recoup some of the money after some testing

heck if you are gonna need it someday anyway, try to find a deal on a used vic jr or super vic and try it out!
Logged

425" pump gas 6.2@110
